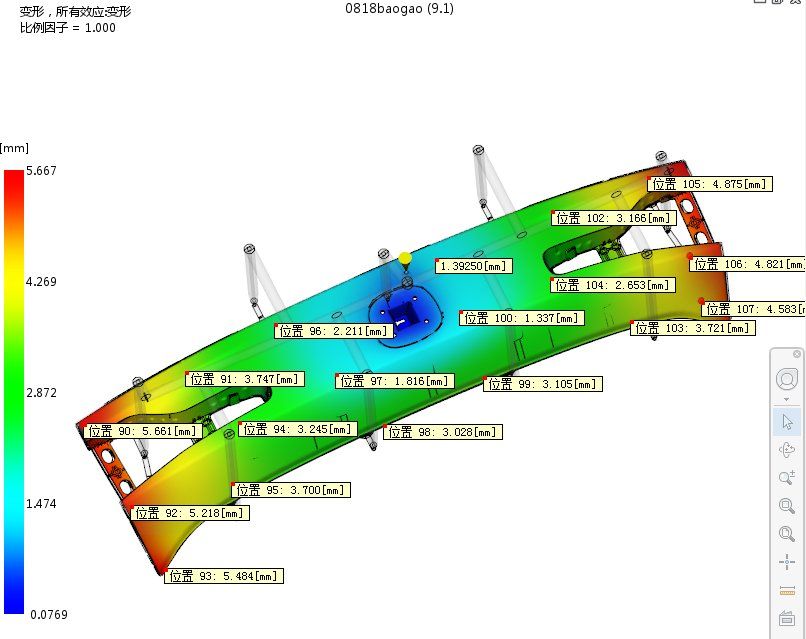

Mould Flow Analysis:

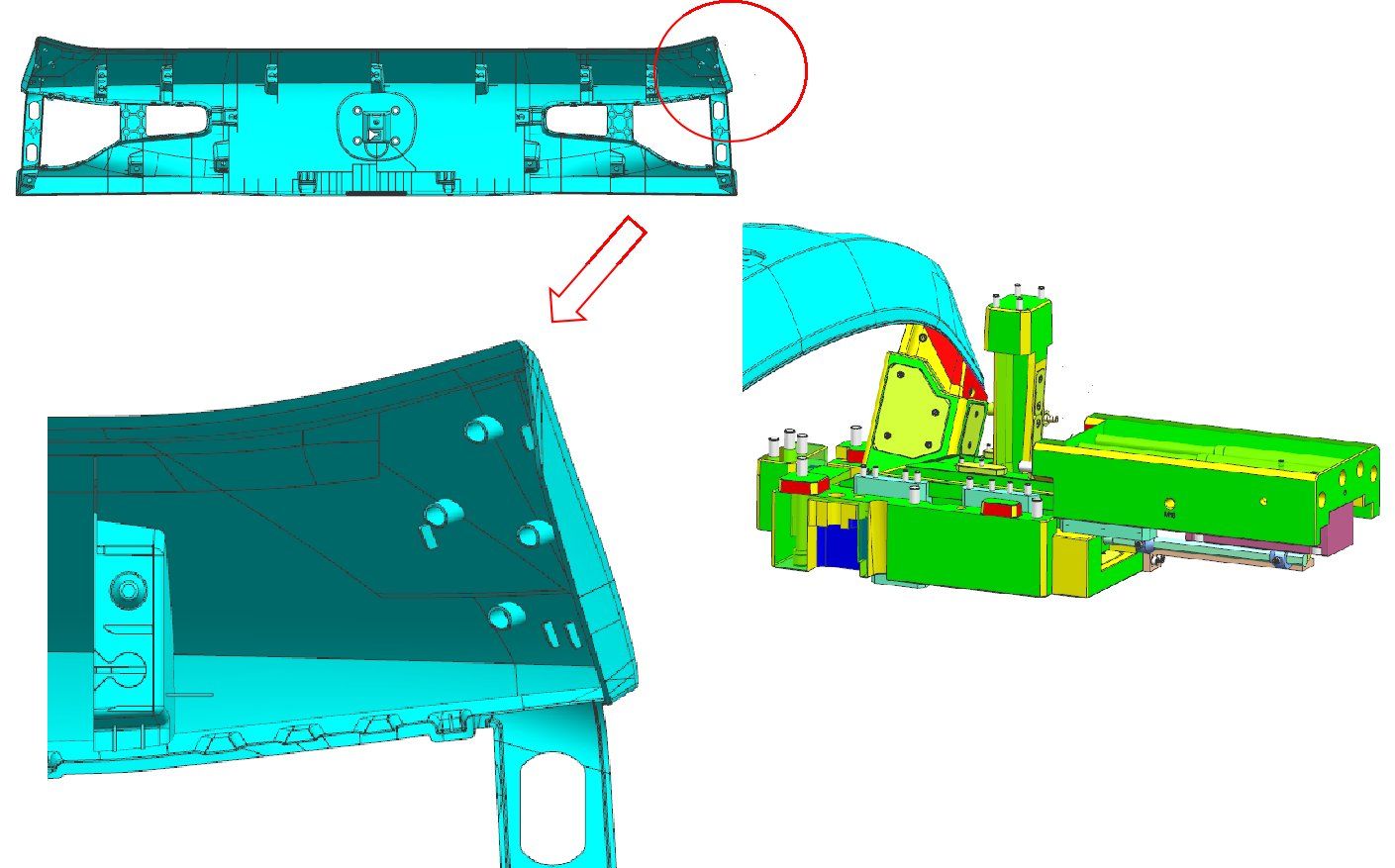

Mould Difficulties:

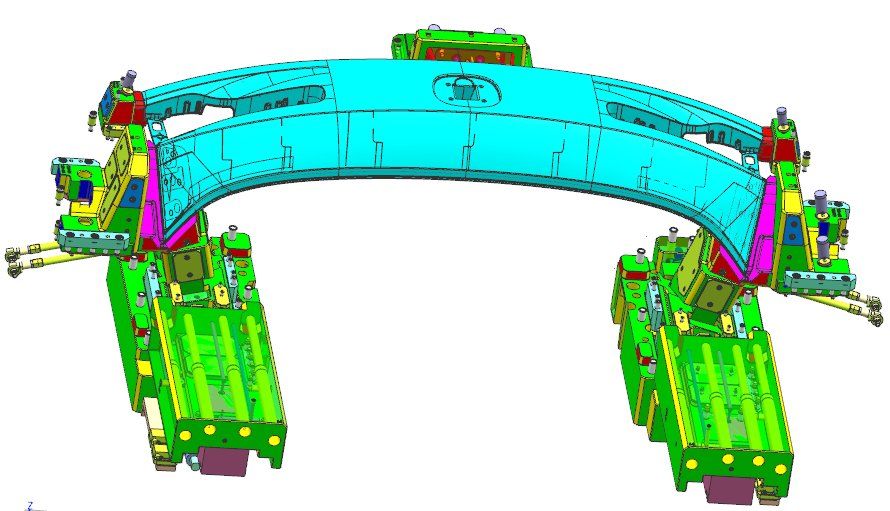

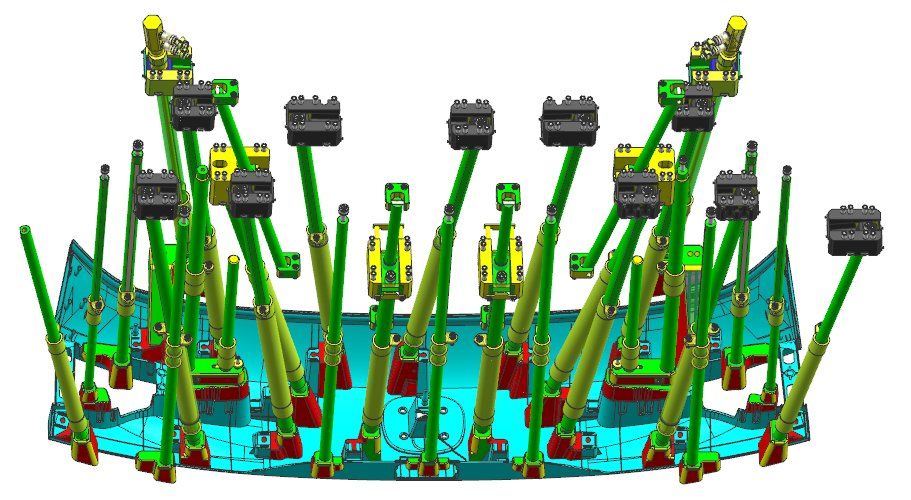

Mould Features:

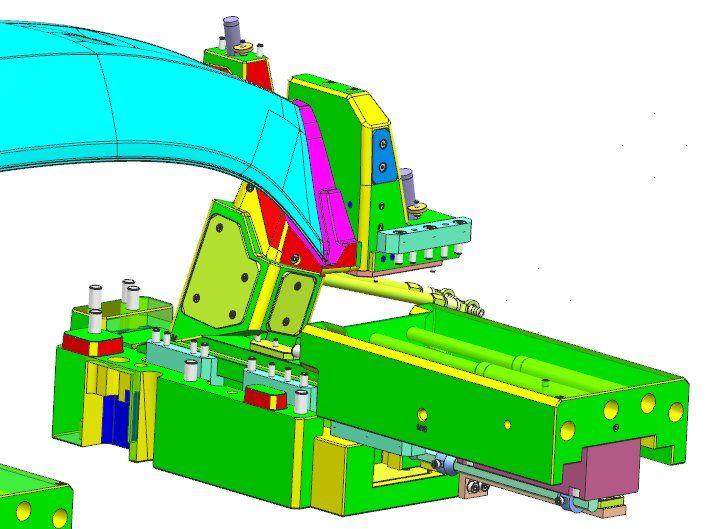

In this position, the column and bone position are undercut in the direction of the draft, and the inclined core pulling of oil cylinder tunnel is added. The holder of the column is stronger during mold opening, which causes mold sticking, resulting in traces on the appearance of the product. The loose core pulling ejector structure is added on the slanting tip core machine of the oil cylinder to ensure the appearance quality of the product.

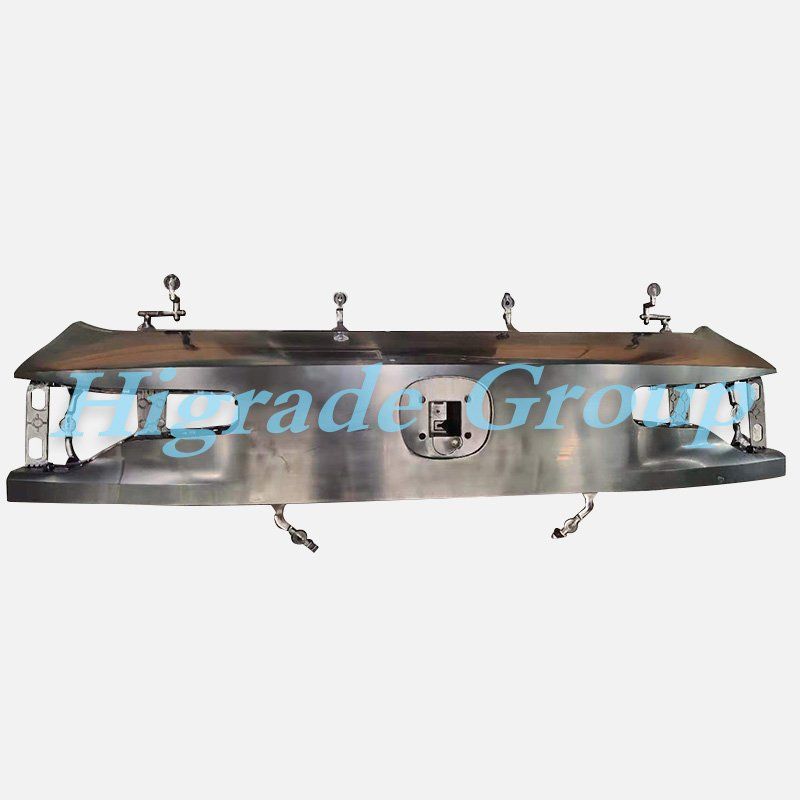

Product Picture:
